Magnifico — rezonans otwarty nowej generacji

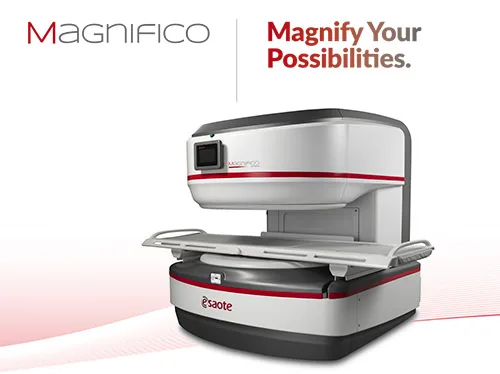

Magnifico — next-generation open MRI from Esaote

Magnifico is Esaote's latest open MRI — a universal MRI system dedicated to whole-body examinations, combining high image quality with low operating costs.

Comfort

The open design, easy positioning of ergonomic coils, a laser positioner, and patient access from practically every side of the bed make examining and positioning the patient easy, fast, and comfortable.

Economy

The highest image quality at the lowest examination costs. This is the motto guiding the creators of the Magnifico system, which is characterized by:

• Easy examinations and a single operator.
• Low operating costs: single-phase power supply, no cooling agents, and a maximum power draw of just 3 kW.

Esaote Magnifico

Magnifico — the result of 30 years of experience in manufacturing magnetic resonance imaging systems

Magnifico is Esaote's latest model of magnetic resonance imaging — the fruit of many years of successful experience in diagnostic imaging. From the outset, the priority for the creators of Magnifico was to understand the customer's needs. The developed technology ensures high imaging quality while keeping examination costs low, setting high standards in the field of open MRI systems.

See video materials about Magnifico

Watch the spot about the Magnifico MRI system

General characteristics

• A maintenance-free open permanent magnet
• Field strength of 0.4 Tesla
• A standalone system of compact size
• Energy consumption less than 3 kW, single-phase 220/110 V power socket
• An ergonomic open patient table for a patient weight of up to 200 kg
• A complete set of dedicated optimized coils
• A full range of imaging sequences including steady-state sequences, various fat-saturation techniques, and contrast-enhanced imaging.
• High resolution with slices down to 0.3 mm in isotropic 3D
• Ease of use: A full set of predefined sequences and protocols

Ease of use

Esaote systems are renowned for their ease of use. Magnifico is no exception here — the system interface has been designed to minimize examination time, and changing scan parameters poses no problem for the operator.

Continuous updating

Esaote MRI systems are designed with the future in mind. With an average MRI system life cycle of about 11 years, the ability to keep up with technological progress is important for meeting market needs.

Speed of examination

Dedicated sequences and optimized protocols enable a short examination time and increase patient throughput, without compromising image quality.

Service support

Esaote continuously upgrades its MRI systems — both in terms of software and the ability to expand with new hardware components. Magnifico is a premium-class magnetic resonance imaging system that meets the requirements of modern diagnostics: integration with any IT system, remote service, and advanced protection of the data stored in the system's memory.

Check the differences

Dedicated Magnifico magnetic resonance imaging vs. high-field magnetic resonance imaging

• single-phase power supply
• no need to interfere with the existing installation
• does not require power modifications, as is the case with high-field MRI
• low examination cost — only energy costs (as much as an average electric kettle)
• low service costs — only calibration costs
• low room adaptation costs — external Faraday cage
• maximum power draw 2.4k VA, that is about 2000 W, plus the power draw of the air conditioner

• The need to create a separate 3-phase power supply with 100 A protection
• the need to replace (replenish) the cooling agent
• an electromagnet at specified time intervals — high costs
• high service costs
• high room adaptation costs (the need to build a Faraday cage and specialized air conditioning)

eXP Technology

Check the technologies found in Magnifico

• True Motion — enables real-time imaging of moving joints. The entire sequence can be saved in the popular .avi format, so the video can be played on almost any device.
• MAR Metal Artifact Reduction — software enabling the reduction of image artifacts originating from metal implants.
• 3D Viewer — an advanced viewer for 3D images created as a result of acquiring 3D isotropic sequences.
• 2D/3D Speed Up — software that, using mathematical algorithms, allows the acquisition and image reconstruction time to be reduced — by up to 30% in 2D mode and up to 50% in 3D mode compared with the standard imaging mode.
• Isotropic 3D — advanced imaging of three-dimensional isotropic sequences, combining Speed Up technology (fast acquisition of high-resolution 3D images) with advanced 3D image reconstruction techniques — MPR. In a single acquisition, we obtain a high-quality image in all three planes.
• 3D Sharc — a three-dimensional sequence dedicated to high-resolution imaging of cartilage tissue.

Ask about an offer for the Magnifico MRI system

We will be glad to present an offer for the Magnifico MRI system, advise on room adaptation, and guide you through the entire purchasing process. We invite you to contact us.
